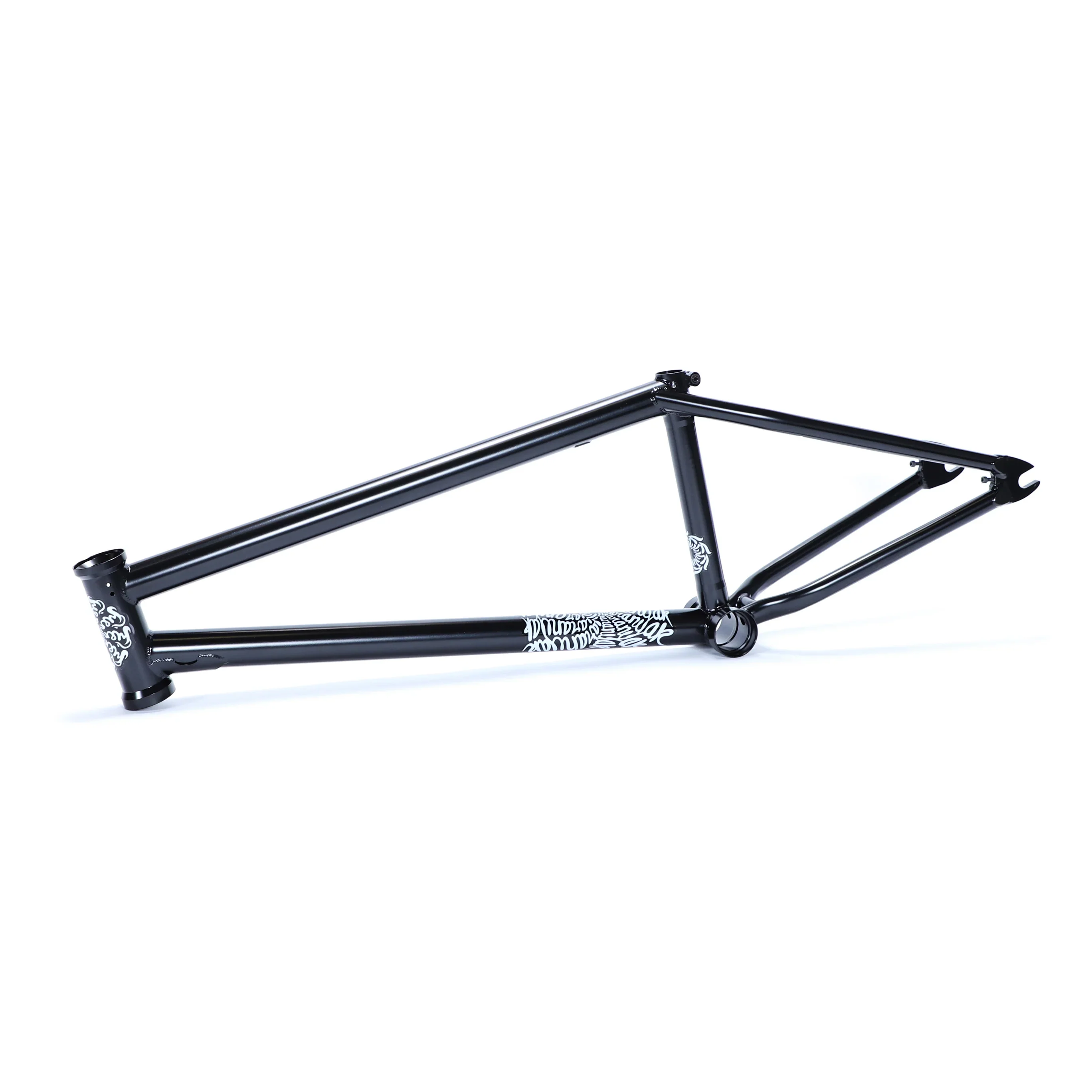

Redesigned by Colin and constructed with 4130 Chromoly throughout. Features include a heat-treated Mid bottom bracket shell and integrated head tube(tapped for detangler tabs), double-butted top tube with external gusset, externally butted seat tube with integrated post clamp, tapered seat stays, updated chain stay shape and updated 8mm thick investment cast dropouts with integrated chain tensioners. Brake Mount hardware included.

*Due to the nature of semi-transparent paint finishes the character of the raw tubing
will be visible and may contain vein-like abnormalities under the paint making each frame unique.

Geometry:
20.25″, 20.5″, 20.75″, 21″ top tube lengths
75.5* head tube (5" tall)
71* seat tube
9″ seat tube height (bottom bracket to top tube, center to center)
11.5″ Bottom Bracket Height
12.7″ chainstays
5lbs. @ 20.75″
